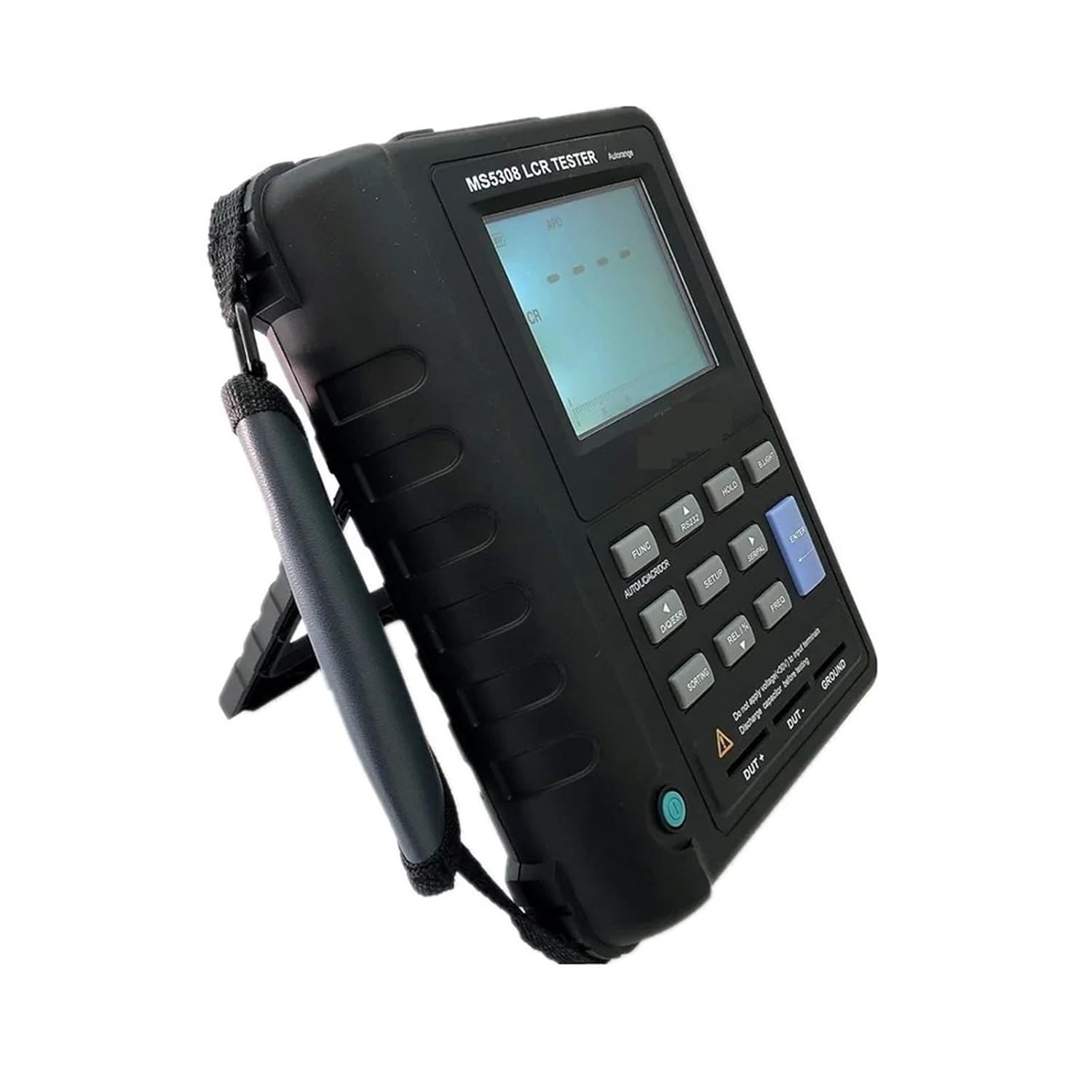

Capacitance Meter, Handheld Auto Range Digital LCR Bridge Test Inductance Capacitance Resistance Meter 100KHz RS232 Dual LCD Display

Descriptions:A Digital LCR Bridge LCR meter is an electronic instrument used to measure the inductance (L), capacitance (C), and resistance (R) of components with high precision. Its primary functions include characterizing passive components, verifying specifications, and troubleshooting circuit issues. The device provides precise measurements at various frequencies, helping engineers and technicians ensure the performance and reliability of electronic circuits.Specifications:19,999 (main)/1,999 (secondary) dual LCD displayLCR measures with automatic identification and automatic measurement rangeL\C\R single measurement selectionD/Q//ESR display on the secondary displaySeries or parallel measurement modes are selectableSupport DCR modeComparison function under single measurementTest frequency 100/120/1k/10k/100kHz is selectable in AC modeThe selection feature for measured components with the same seriesBattery power display, auto power off if meter is not operated for 5 minutesDimension: 224mm×172mm×59mmMeasurement range and accuracy:L: 20mH --- 2000H highest accuracy (0.5% +5 words)C: 200pF --- 20mF highest accuracy (0.5% +5 words)R: 1 ------ 200M highest accuracy (0.3% +5 words)Impedance / frequency / DCR/100/120/1k/10k/100k0.1-1/1.0% / 1.0% / 1.0% / 1.0% / 1.0%1-10/0.5% / 0.5% / 0.5% / 0.5% / 0.5%10-100k/0.3% / 0.3% / 0.3% / 0.5% / 0.3%100k-1M/0.5% / 0.5% / 0.5% / 1%1M-20M/1.0% / 1.0% / 1.0%20M-200M/2.0% / 2.0% / 5.0%

• Precision Measurement: Provides high accuracy in measuring inductance, capacitance, and resistance
• Frequency Range: Capable of operating across multiple frequencies to analyze component behavior
• Digital Display: Features a clear digital screen for easy interpretation of results
• Accurate Readings: Offers precise measurements with multiple significant digits
• Calibration Tools: Includes built-in calibration functions to ensure consistent accuracy
